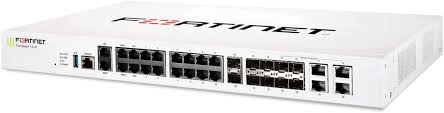

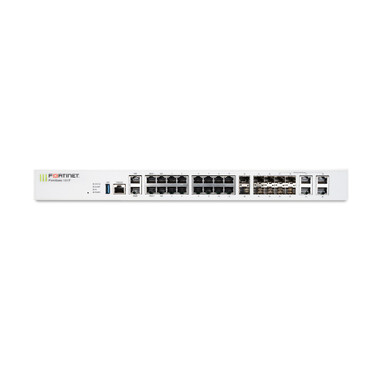

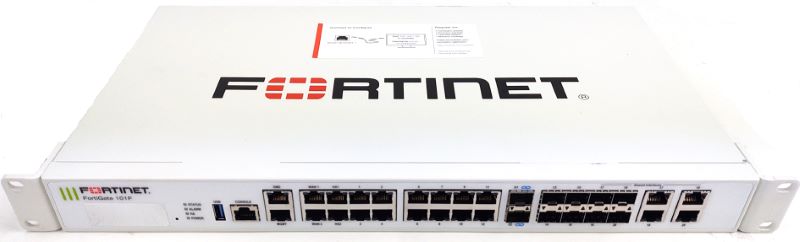

FG-101F 22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, 480GB onboard storage, dual power supplies redundancy.

The Fortinet FortiGate FG-101F is an advanced enterprise-class next-generation firewall designed to deliver high security performance and flexible connectivity. It includes 22 GE RJ45 ports, providing dedicated WAN, DMZ, HA, management, and 16 switch ports (with 4 SFP shared-media options) for versatile network segmentation.

The appliance also features 4 standard SFP ports and 2 × 10G SFP+ FortiLink uplink ports, enabling high-speed aggregation, secure SD-WAN routing, and scalable network expansion.

Unlike the FG-100F, the FG-101F includes 480GB of onboard storage, supporting logging, reporting, local analysis, and extended features without an external storage device.

With dual redundant power supplies, the FG-101F ensures continuous availability, making it ideal for critical business environments, enterprise branches, and distributed networks requiring maximum uptime and security.

🟫 Key Features

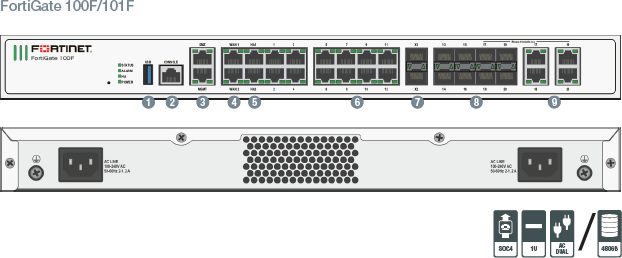

22 × GE RJ45 ports

2 × WAN ports

1 × DMZ port

1 × Management port

2 × HA ports

16 × Switch ports (with 4 shared-media SFP)

4 × SFP ports (1Gb)

2 × 10G SFP+ FortiLink uplinks

480GB onboard SSD storage

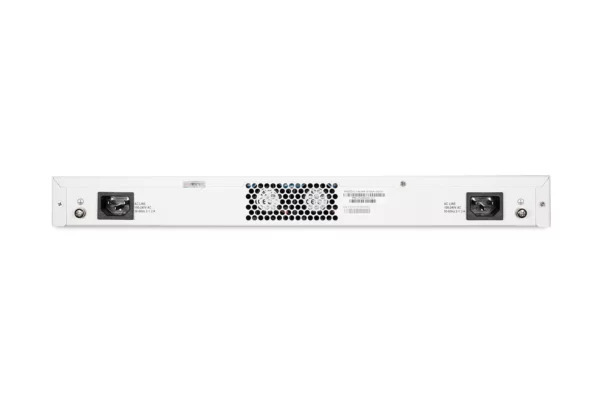

Dual redundant power supplies

High-performance NGFW for enterprise networks

Supports SD-WAN, IPS, application control, VPN, and advanced threat protection

Ideal for medium and large business deployments

🟧 Technical Specifications
Feature Details
Model FortiGate FG-101F
Ethernet Ports 22 × GE RJ45
SFP Ports 4 × 1Gb SFP
SFP+ Ports 2 × 10Gb SFP+ (FortiLink)
Switch Ports 16 GE (4 SFP shared media)
WAN Ports 2
HA Ports 2
DMZ Port 1
Management Port 1
Internal Storage 480GB SSD
Power Dual redundant PSU
Form Factor Rackmount
Use Case Enterprise, branch offices, distributed networks
